DYE SPENT SERIES

Reloaded. Refined. Reimagined.

The DYE Spent Series brings back one of the most requested designs in DYE history — the iconic Spent PGA pattern. But this time, we went further.

If we were going to bring back a fan favorite, it had to be more than a reload. The Spent Series represents a complete evolution — not just a return of the pattern, but the creation of a full, matching lineup of CNC-machined Spent Series accessories designed to make each marker truly one of a kind.

Designed for players who value precision, craftsmanship, and individuality, every piece is built to stand out while staying true to DYE’s reputation for design excellence. Every part, from the marker to the smallest component, was made to look as good as it performs.

SPENT SERIES MARKERS

MXR Spent
DSR Pro Spent

Each Spent Series marker features its signature Spent PGA design and comes equipped with exclusive, precision-machined Spent Series parts — including the 9mm Bolt Button, 6 Shooter Feedneck Knob, and .45 or .223 Feedneck Levers — giving each setup a distinctive and elevated finish.

Introducing the DYE MXR: 20 Years of Paintball Marker Technology & Innovation

The DYE MXR represents over two decades of relentless marker innovation, combining the best of our championship winning technology with cutting-edge advancements to deliver a marker that stands in a league of its own. Designed for both the seasoned pro and the avid player, the MXR is engineered to dominate on any field, providing unmatched performance, precision, and reliability.

We stand on the brink of a new era. Prepare yourself. The next level is here with the DYE MXR.

Precision Engineering Meets Next-Level Performance

The MXR is the embodiment of DYE’s commitment to excellence. Every feature, from the revolutionary ARC-X Bolt System to the advanced 3v-MOSair Operating System, has been meticulously crafted to enhance your game. The MXR’s ARC-X Bolt delivers a smooth, consistent shot with industry-leading efficiency, while the Flex Face Bolt Tip ensures gentle handling of even the most delicate paint. With its low operating pressure and dwell-insensitive design, the MXR is built to perform flawlessly in any condition.

Built for the Competitive Edge

Whether you're gearing up for a weekend with friends or preparing for the finals of a championship, the MXR gives you the competitive edge you need. The SLAP-2 ASA Slide Lock AirPort offers a streamlined, tool-free operation, while the TAAC Detent System ensures precise, multi-directional ball control. The patented UL 45 Frame and ergonomic Sticky Grips provide the ultimate in comfort and control, allowing you to play longer and harder with less fatigue.

Innovative Design for the Modern Player

The MXR isn't just about performance—it's about ease of use and adaptability. The marker’s quick-release bolt system, quick release grips, and color-coded o-rings make maintenance a breeze, while the gas-thru design and low-profile construction enhance maneuverability. Plus, with its upcoming Mech Frame compatibility, the MXR offers versatility like never before, allowing you to switch between electronic and mechanical setups with ease.

Unmatched Craftsmanship & Durability

Crafted from aerospace-grade aluminum and featuring a sleek, no-exposed-screws design, the MXR is as tough as it is refined. The low-profile body is lightweight yet durable, weighing in at just under 1 lb 15.2 oz, including the barrel and batteries. The all-metal Lockdwn2 Clamping Feed Neck and Hyper 6IM Regulator ensure that the MXR can withstand the rigors of any game, keeping you on the field and in the fight.

Experience the Legacy

The MXR is more than just a marker; it’s the culmination of 20 years of paintball marker innovation through top-tier engineering and player & customer-driven design. Whether you're a seasoned veteran or just starting your paintball journey, the MXR delivers the performance, reliability, and precision you need to elevate your game. Join the DYE legacy and experience the future of paintball with the MXR.

Quick Feature View:

Arc-X Bolt
Flex Face Bolt Tip
Next gen marker platform
SLAP2 ASA Slide Lock AirPort
Breech Sleeve - 5th Gen Breech System
TAAC Detent system - Revolutionary, true multi directional ball control detent system
Mag X-Reach trigger system-2 Trigger profiles included
3v-MOSair Operating System
Internal Pressure Sensor
Freewire Connectors
Powered by 2 AA batteries
DYE Boomstick UL-i™ Barrel system with .680, .684, .688 Included
Mech frame compatible (coming soon)
Patented UL 45 Frame
DYE Sticky Grips-Quick release
Hyper 6 IM Regulator
Lockdwn2 Clamping Feed Neck
Quick Release Bolt
Colored O-Rings
Gas-Thru
Low Profile Design

Luxury Design & Ergonomic Construction

No exposed screws or plates
All aluminum Aerospace grade construction
Low profile design
Ultralite 45 frame with full wrap quick release sticky grips
Dual density, micro textured grips
Best in industry ergonomics
Simple joystick OS operation and navigation
3 tool assembly
Compression formed protective case with Die cut EVA foam

NEW ARC-X Bolt Design

Reduced O-ring count
Longer service cycles
Simplified service
Redesigned valve porting
Improved shot to shot consistency
Softer and quieter shot signature
Dwell insensitive
High efficiency
Low operating PSI (about 120psi)
Air supply cut off in Solenoid
Minimized chamber expansion
Air spring return

The all-new ARC-X Bolt is DYE’s groundbreaking engine that delivers amazing performance in a robust, reliable package. The ARC-X Bolt’s smooth quiet shot, high efficiency, and soft touch on paint is the result of precise engineering. Optimized flow paths, dwell independent valve control, air supply cut off, and nearly zero chamber expansion are all critical to the ARC-X bolt system air efficiency. Controlled bolt acceleration, air spring, impact bumpers, and low operating pressure ensure a smooth quiet accurate shot that is extremely gentle on paint.

Flex Bolt Face

Proven flex face design
Extremely gentle paint handling
Flaring soft tip design offers no blowback or breech drag.

The Flex Face soft tip bolt is an instant upgrade to paint handling. The Flex Face bolt tip ensures the most fragile paint will be gently carried through the breech and helps protect irregularly shaped paint from clipping.

Next Gen Marker Platform

Classic DYE high end features
Increased grip clearance between frame and fore grip
Increased thumb room accommodates virtually any grip style
Extended marker length for better balance and control

SLAP-2 ASA Slide Lock AirPort

Patent pending design
Easy to use
Slide On/Off operation
Dependable shielded cover and reliable design
Aluminum construction

DYE’s Slide Lock AirPort (SLAP) ASA’s new enclosed SLAP design provides long term dependability in a rugged and easy-to-operate package. The shielded design has no button to operate, no knob to turn, and no lever to get snagged. All critical operations are protected by the Slide Lock Cover. Simply press and slide the lock cover back to engage the air supply with ease.

TAAC Detent System - Tri Axial. Alignment. Control Detent System Breech Sleeve – 5th Gen Breech Insert System

NEW aluminum design with retaining bar
Control Band Detent- Patent Pending true multi-directional ball control detent system
Adjustable detent for widest range of paint handling
Protects from damaging breech ware. Improved breech geometry – reduces ball bounce, improved paint handling
Eliminates bulky eye plates and small easily stripped mounting screws

DYE’s patented Breech System moves into its 5th generation of refinement with updated breech geometry and an all-new adjustable detent design that accommodates a wide range of paint sizes including extremely small paint. Some of the important features of the Breech Sleeve System - it shields the anti-chop eye system from dirt and broken paint, your marker stays protected from harsh environments eliminating permanent performance hindering breech wear, and the new retaining bar helps lock the pipe in place. This next gen breech system also eliminates the need for bulky, antiquated exterior eye plates.

New Mag Reach-2 Trigger

New trigger blade retention design
Magnetic return force
Improved external trigger travel control
Improved trigger pin design
Adjustable trigger rake angle
Dual stainless steel roller bearings
Improved sustainable ramping
Improved leverage

The Mag-Reach2 Trigger system incorporates super smooth benefits of magnetic trigger return. It is the next evolution in individually customized ergonomic comfort, as well as optimal trigger speed. The adjustable trigger angle, travel, and magnetic return force allow you to create a personalized fit. All adjustments on the Mag-Reach-2 trigger are accessed externally, so you can reach your ultimate shooting capabilities.

3v-MOS Operating System

High contrast OLED display screen
5-way joystick control
Training modes
Extended battery life
Dual player profiles

The MXR is powered by DYE’s Method Operating System (MOS). The 3V-MOS gives the operator unrestricted access to precision tuning and unsurpassed performance. The 5-way Joystick control and high contrast OLED display screen provide an intuitive user interface. Optimized MOS programing logic ensures lightning-fast response time, long battery life, precision tuning, and dual player profiles to store your exact playing specifications. Communication between frame and body is facilitated through the freewire connector pins. Compression pins ensure a positive connection between performance driving hardware and the MCU. DYE Freewire connector pins eliminate awkward wire routing, and dramatically improve serviceability. The MXR’s 3v-MOS truly provides advanced performance in the palm of your hand.

Internal Pressure Sensor

The MXR is equipped with an internal pressure sensor that monitors the operating pressure in the marker. Extremely accurate digital pressure transducer helps you keep the MXR within the optimal pressure ranges. No more packing around heavy testers with bulky dial gauges. DYE’s Prism Interface will confirm your pressures in seconds.

Freewire Connectors

Wire-Free between frame and body – quick disconnect, contact pads
Eliminate awkward wire routing and dramatically improves serviceability

2-AA battery Operation - 3 Volt power supply

The MXR operates on the new 3V-MOS system, which is powered by a simple 3-volt power supply of 2 AA batteries.

Boomstick-i Barrel System

8.5-inch control bore
Superior accuracy
Autococker quick threads
Precision multi-stage honing
Self-centering 3-piece design
Slip fit, self-clamping design
Multiple inserts bore sizes- .680, .684, .688 included
Internal Diameter Tolerance +- 0.001”

Multi-Stage Precision Honing

All Boomstick-i™ barrels go through the same proprietary DYE multi-phase precision honing method that you have come to count on. This highly protected, proprietary process yields a Ra4 mirror like surface finish that is the most accurate and consistent finish available in paintball. Multi-stage Precision Honing removes all imperfections in the barrel’s surface efficiently minimizing ball spin and air turbulence. This produces exceptionally stable ball control and maximizing accuracy.

Three-Piece Construction

Three Piece Construction gives you the flexibility to run multiple combinations of tip length, control bore size and back support. Gearing up with confidence knowing that every combination of the DYE Boomstick-i™ Barrel System produces the best barrel in the industry.

Steady Port Pressure Porting

DYE’s trademark muzzle port design is another key feature that gives DYE barrels unparalleled accuracy and a low sound signature.

Self-Center Centering Alignment

Alignment is a critical factor in a barrel’s true accuracy. The self-centering, angled surfaces are used to ensure precise alignment between all Boomstick-i™ components. DYE’s Proven alignment design eliminates tolerance variations and thread wear from the equation, giving you long-lasting reliable performance and accuracy.

Mech Frame Compatible

Play any format with the MXR. With the simple addition of the aftermarket MXR Mech frame that allows you to quickly swap between E-frame and M-frame setups.

Toolless Sticky Grips

Simple and quick release grips
Full 360° wrap grip
Micro texture surfaces
Superior comfort, grip, and control
Improved water intrusion protection

The 360° wraparound Sticky Grip™ with micro texture provides ultimate grip. Dual-density design offers comfort and control. The simple tool-less design utilizes a durable locking system that ensures a rock-solid grip, a reduction in potential water intrusion areas, and at the same time quick access for service.

Patented UL 45 Frame

Proprietary DYE hourglass shape
Ergonomic designed specifically around dual-finger trigger design
Superior comfort, grip, and control

The UL 45 frame is the culmination of top pro player influence and progressive engineering. Designed specifically for modern double finger triggers, the UL frame’s hourglass shape was ergonomically designed to give the player ultimate control, comfort, and performance. The UL frame combined with DYE’s now world famous Sticky grips offers a secure grip for stability and accuracy, while at the same time encourages a sustainable, rapid trigger speed. The Mag Reach-2 trigger with adjustable travel, activation, and resistance allows for optimal tuning for unbeatable speed, reaction time and trigger control.

Hyper 6IM Regulator

Proven reliable design
Air pressure bleed off
Coil spring for easy service
2 screw mounting - easy service
Top load assembly – faster easier service provides better access to all o-rings
Regulator is integrated into SLAP-2 ASA

The Hyper 6IM features a more efficient airflow path and consistent piston movement. The latest generation of DYE’s trusted line of regulators is the most reliable and consistent regulator DYE has produced to date. Updated with a single coil spring and top load assembly delivers exceptionally easy service. Integrated into the Hyper 6IM is a pressure bleed off to ensure no gas is trapped in the marker when degassed. These refinements were focused on performance, reliability, and safety to ensure the best playing experience possible.

Lockdwn2 - Lever Lock Clamping Feed Neck

Positive grip of any size hopper neck
Thumb wheel for fine toolless tuning of clamp force
All metal design
Zero swivel collar
Adjustable cam lever clamp

The adjustable Lever Lock allows you to securely lock your R-2™ or Rotor™ Loader onto your marker without tools. DYE’s Lever Lock feed neck sits low and tight on the marker making sure your R-2™ or Rotor™ stays low profile with the rest of your gear.

Quick Release Bolt

Push button removal
Quick pin styled operation
Air lock prevents accidental release while under pressure

The all-new Quick Release Bolt Assembly features a robust steel gate system with air lock that prevents accidental bolt release and a securing the bolt in place. A simple push button system allows the user to remove and reinstall the bolt kit in seconds. Standard maintenance has never been easier or more accessible.

Colored O-Rings

Color coded O-rings make it easy to quickly identify the correct replacement o-ring when performing maintenance on your marker. Keep it simple!

Gas-Thru

Updated airpaths enhance ergonomics and performance while also eliminating the need for hoses. Switching hands in tight situations has never been quicker or easier.

Low Profile Design

The MXR features one of the lowest profiles in today’s market. The MXR’s streamlined for the most competitive profile possible. With this compact profile comes dramatic weight savings as well. The MXR weighs in at less than 1lbs 15.2 oz including barrel and batteries.

Gen2 Solenoid - Serviceable

The MXR features a serviceable solenoid assembly. Gone are the days of complete replacements, in most cases leaking can be solved with the simple replacement of an o-ring or cleaning of an air passage.

DYE PGA - (Proprietary Graphic Anodizing)

The PGA process is one that is truly unique to each marker that is created in DYE production facilities. There will be seams and parting lines that are kept to a minimum but will be visible due to the proprietary nature of the 360 degree anodizing process. We look at the lines as a necessary element that provides full graphic anodizing to the entire body of your marker. No two markers are exactly the same due to this artistic, handmade process of applying graphics and anodizing.

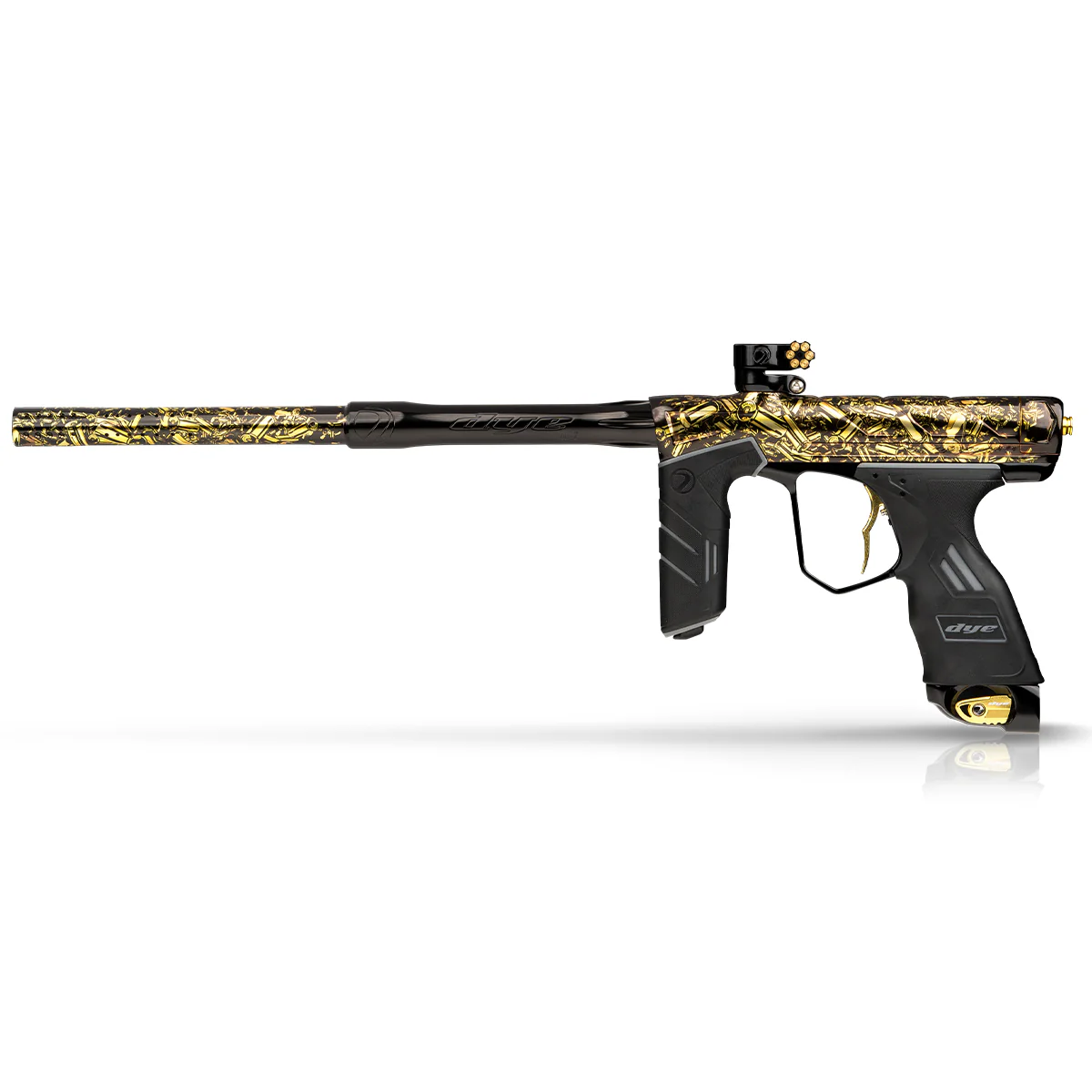

DSR PRO PGA SPENT

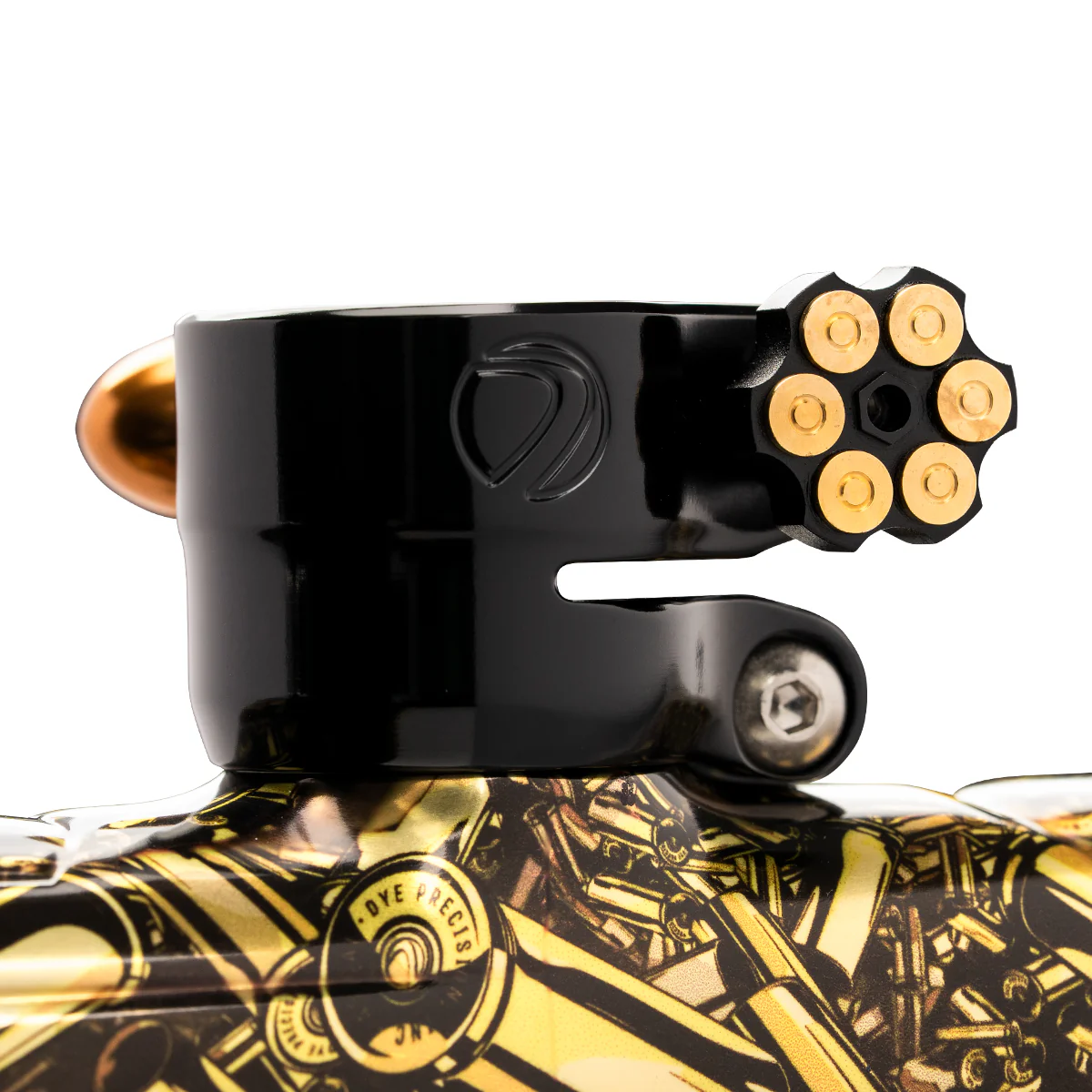

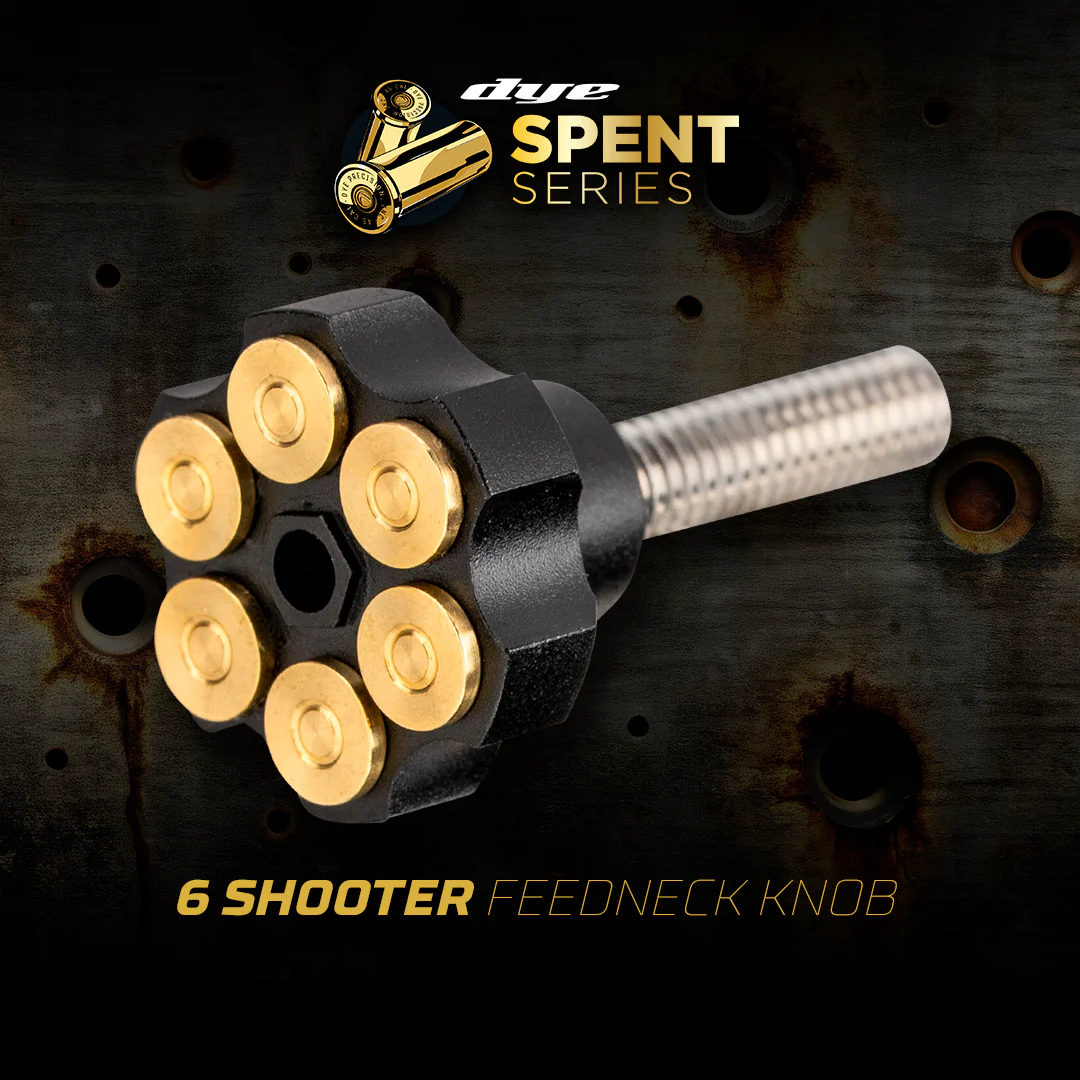

FEEDNECK KNOB WHEEL - SPENT 6 SHOOTER

Bolt Button - SPENT 9mm

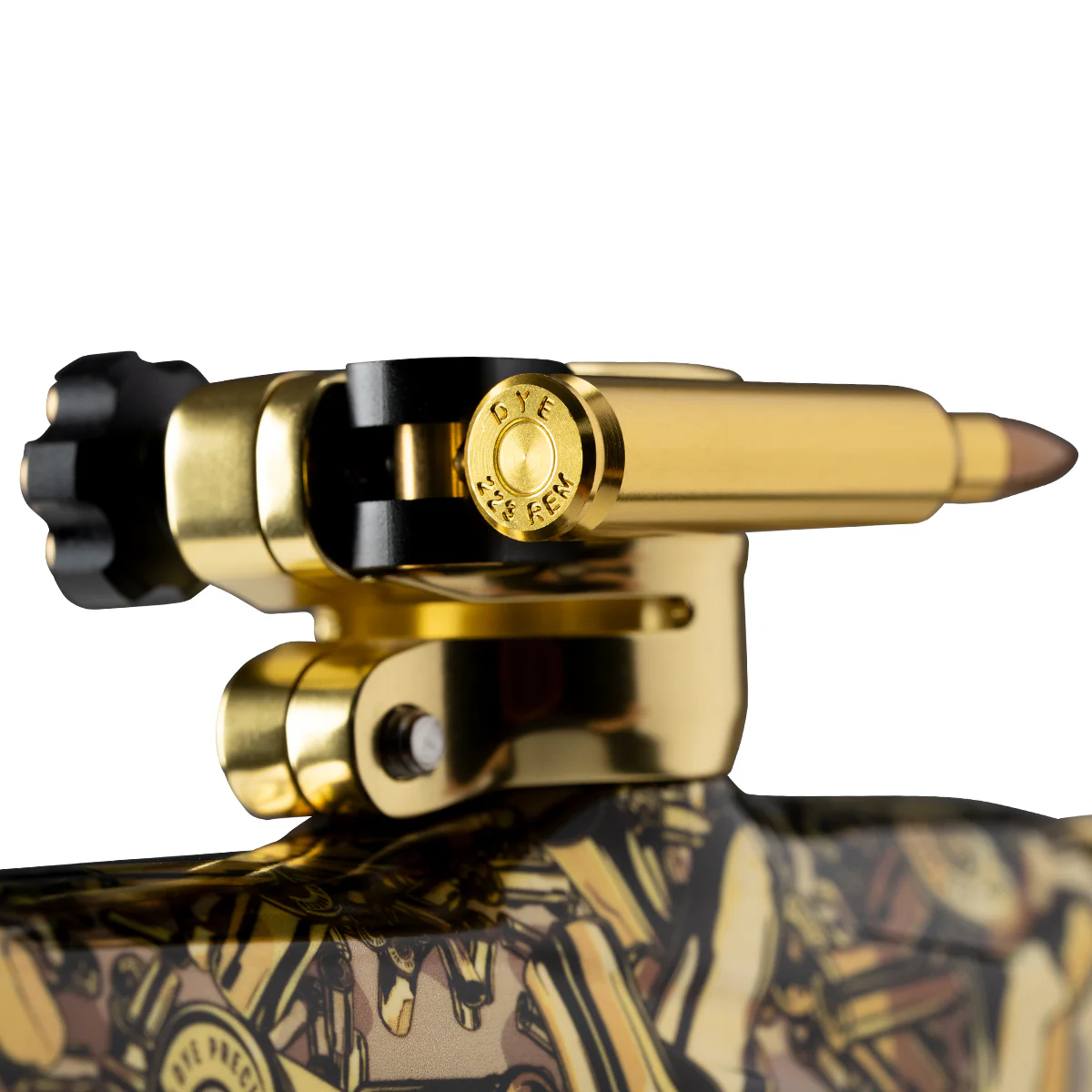

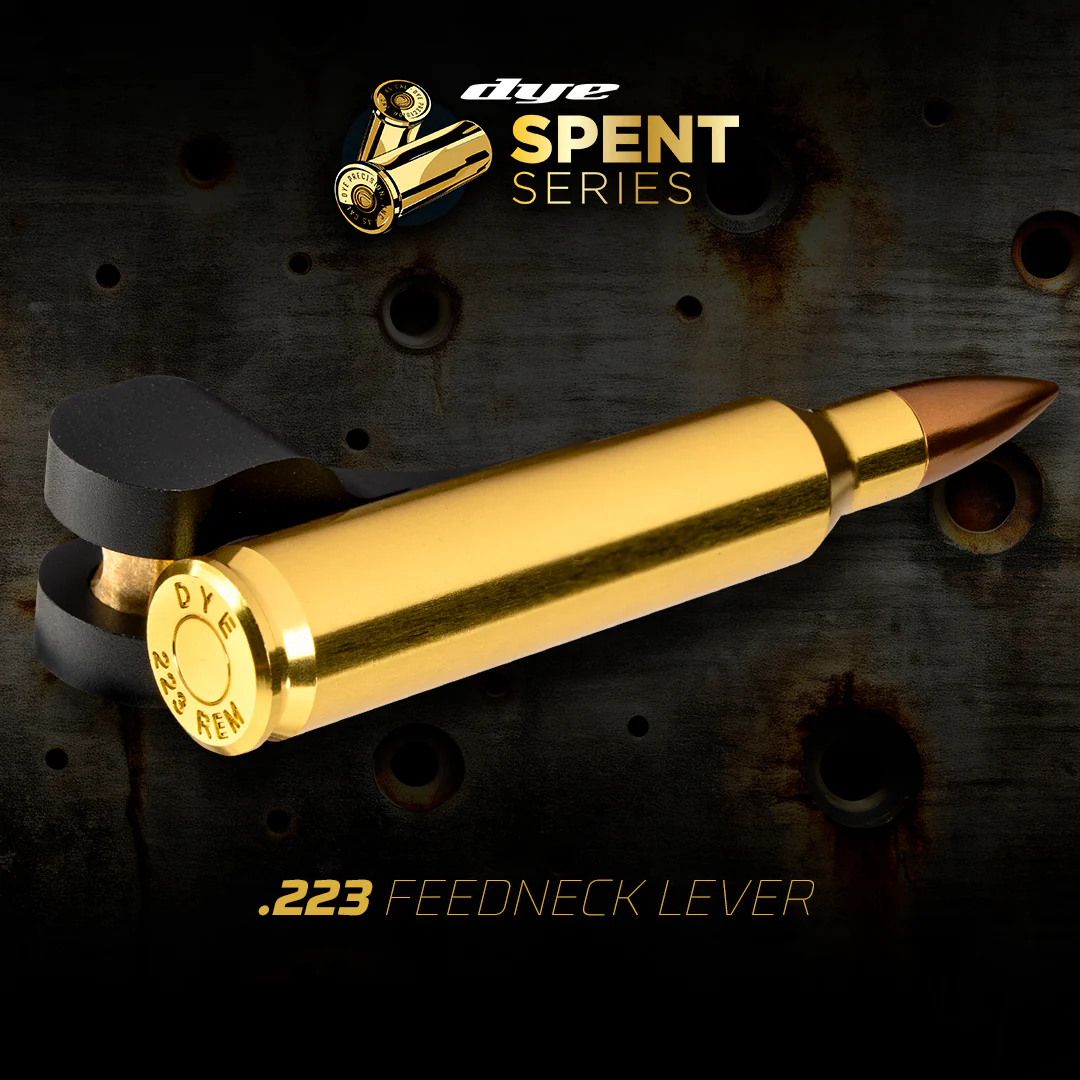

FEEDNECK LEVER - SPENT .223

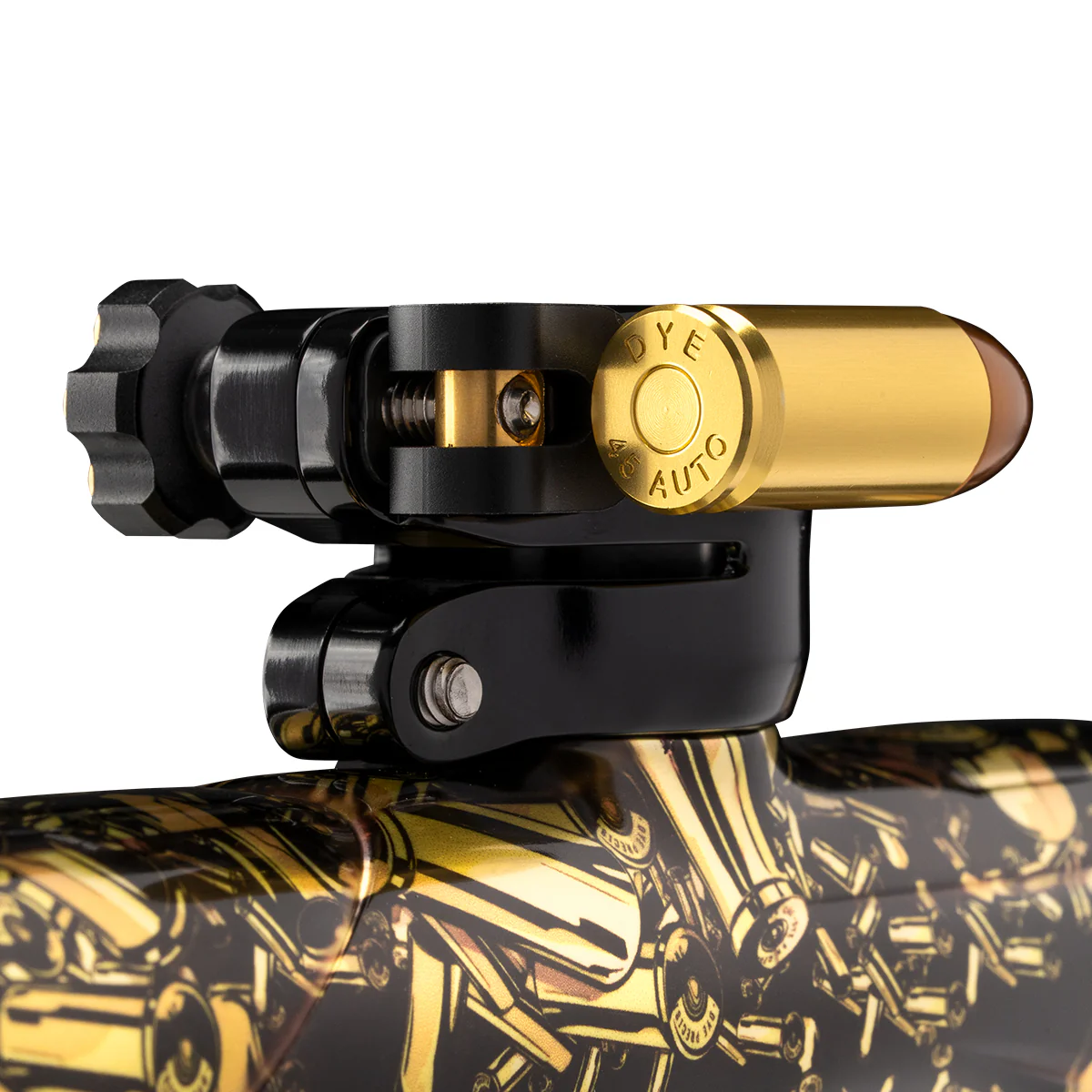

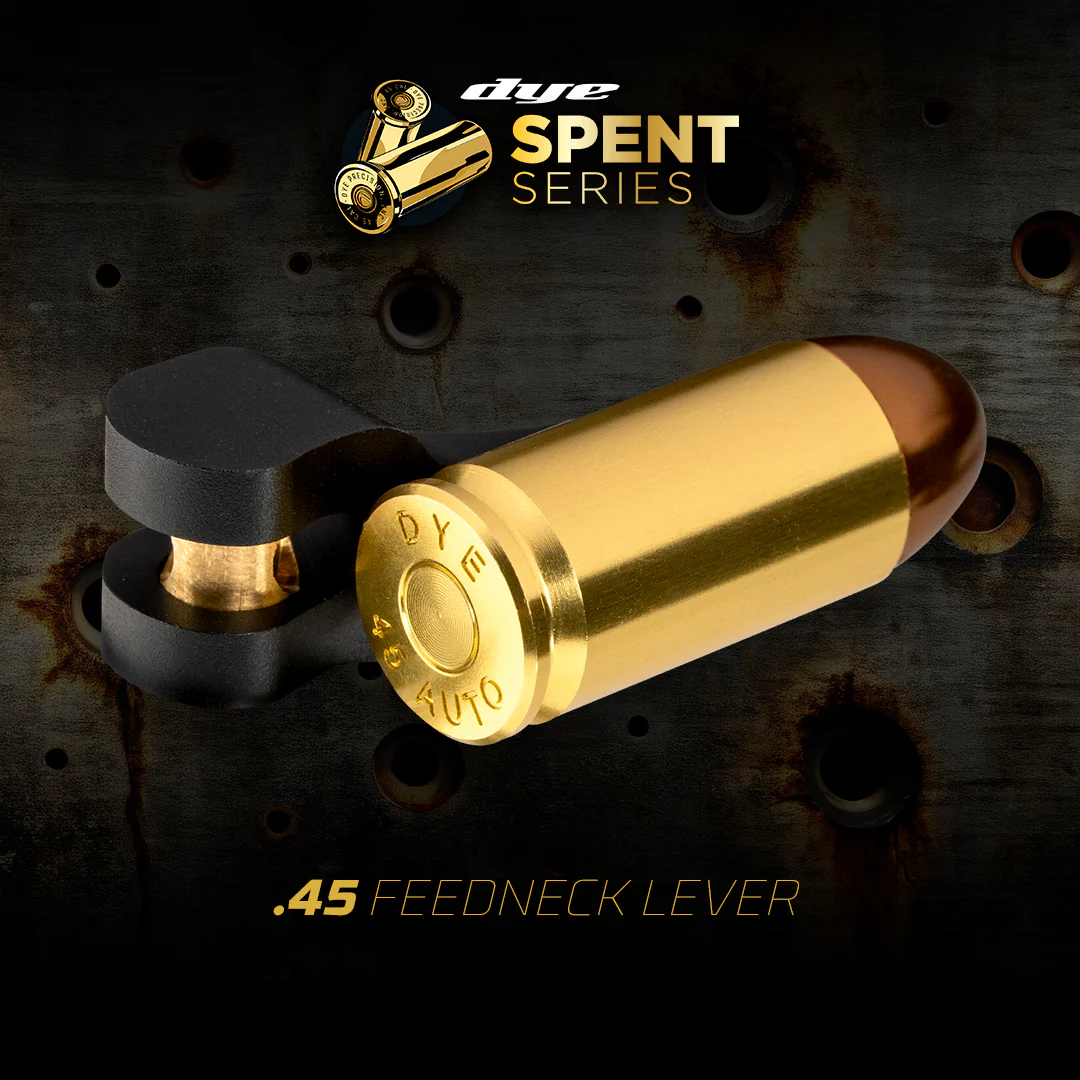

FEEDNECK LEVER - SPENT .45

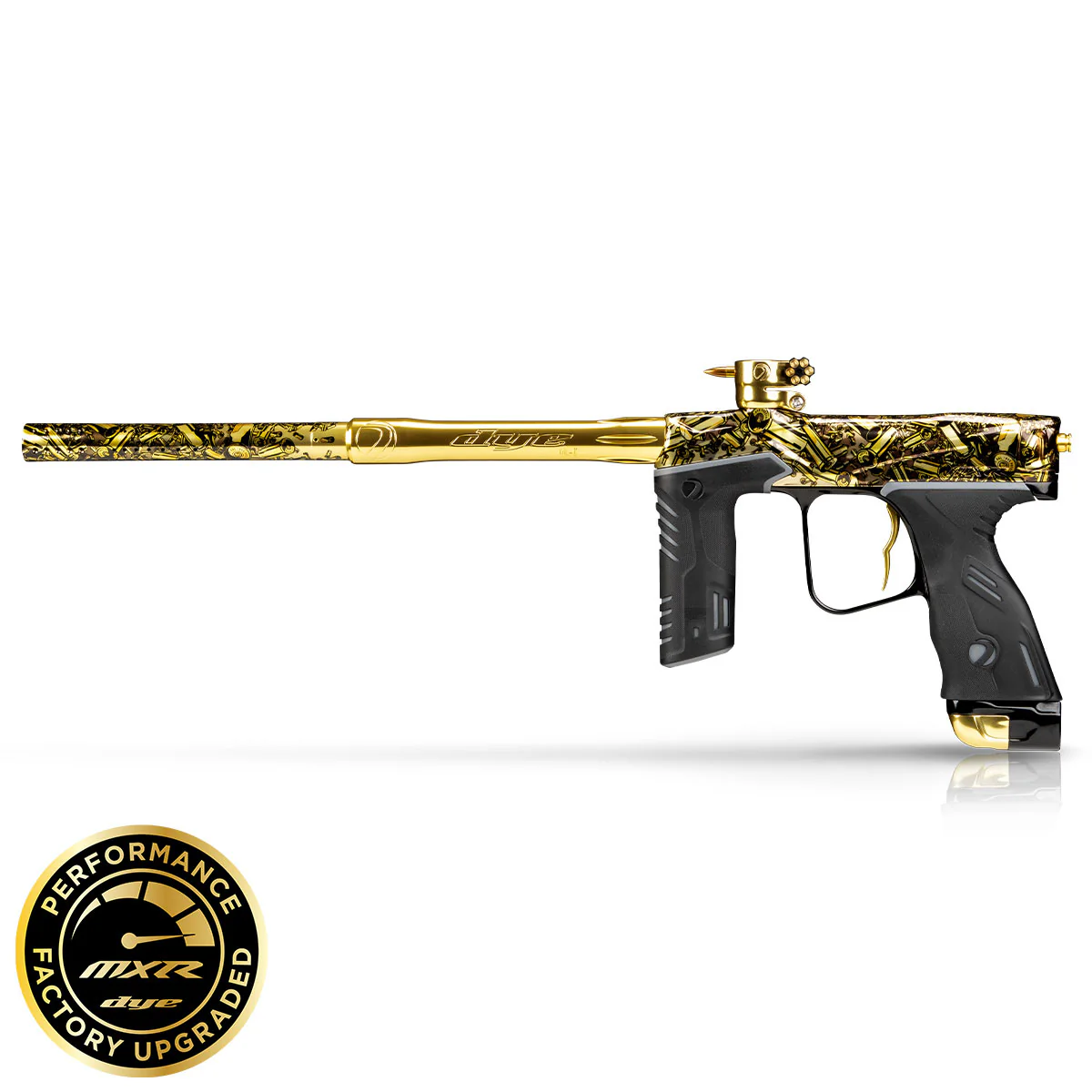

MXR MARKER PGA SPENT
